 Who is Francis Cable Systems?

Proudly Made In New Jersey, USA

Francis Cable Systems is a privately held company that was formed in 1978, and has been producing UL Listed armored cable products for many years in New Jersey USA.

Made In jersey - Francis Cable Systems



CONTACT USA NOW FOR YOUR FRANCIS CABLE PRICING

Contact Us





MC Cable Video YouTube



We pride ourselves on producing a high-quality product while participating favorably in a very competitive marketplace. We have provided wire and cable to some of the largest projects in the Northeast United States, and also have proven to be an asset to companies looking to finish projects with unique custom armoring concepts on a timely and cost-effective basis.

Key Products:

  • MC Cable
  • Armored Cable-90°  (AC90)
  • MC Lighting Cable
  • Data Center Cable
  • Armored Fire Alarm Cable
  • Metal-Clad Fire Alarm Cable
  • Health Care Facilities Cable
  • Metal-Clad ArmorGround Cable
  • Health Care Facilities Cable
  • Opti-Neutral
  • PVC-Jacketed Metal-Clad Cable

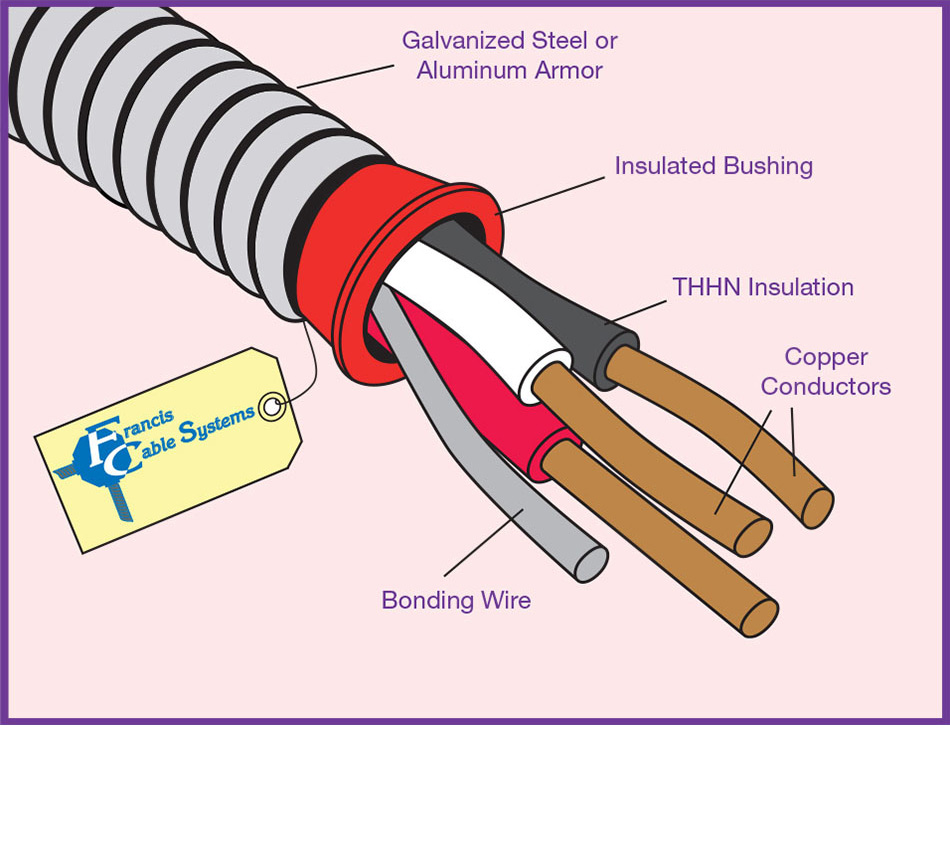

Armored Cable-90°

Armored Cable-90° - AC90

Francis Cable Systems delivers only the highest quality armored cable that meets standards set by Underwriters Laboratories. Each coil bears the UL label and meets Federal Specifications AA-59544. Armored cable is a safe, modern and economical alternative to EMT and wire, or greenfield and wire for commercial, residential and industrial applications. Fire-safety is enhanced because the wires are encased in a metal jacket which also serves as an additional ground-fault path (along with the separate bonding wire running underneath the armor).

MC Lighting Cable

MC Lighting Cable

MC Lighting cable produced by Francis Cable Systems is a cost-efficient way to provide lighting and low voltage circuits in one cable. It permits conductors of Class 2 and Class 3 circuits to be placed in a cable with conductors of electric light, power, or Class 1 circuits.

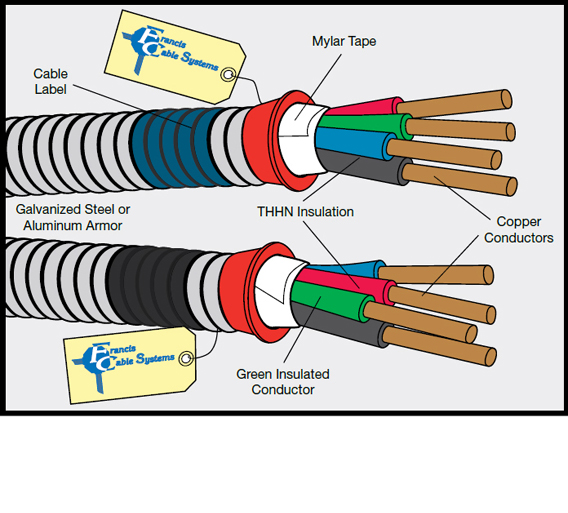

Data Center Cable

Data Center Cable

Data Center (DC) Cable produced by Francis Cable Systems is a cost-efficient alternative for pipe-and-wire systems, especially when installing under raised floors. Data Center Cable offers unsurpassed reliability and ease of application. Data Center Cable provides greater resistance to mechanical damage, permits design flexibility of cable runs, and simplifies cable rerouting for equipment relocation. The cable handles power, lighting, control and signal circuits. It is ideal where space is limited and maximum performance is demanded.



Armored Fire Alarm Cable

Armored Fire Alarm Cable

Type THHN/THWN conductors are provided for sizes 14 AWG and 12 AWG cables; Type TFN conductor are provided for sizes 18 AWG and 16 AWG cables. The circuit conductors and a green insulated grounding conductor are cabled together and a polyester or polypropylene tape is wrapped around the assembly. Upon request, an optional Film/Foil Aluminum Laminate Shielding Tape with a tinned copper drain wire/grounding conductor is wrapped over the conductor assembly. Aluminum or Galvanized Steel interlocking armor is applied over the assembly. Red colored removable non-conductive labels suitable for plenums are applied to the armored cable every 18 inches or less, making it easy to identify as a fire alarm cable. Multiple twisted (cabled) conductors pairs/groups with optional shield(s) are available. The cable is dual rated as 90°C dry, 600 Volt Type MC and 105°C dry, 300 Volt Type FPLP cable.

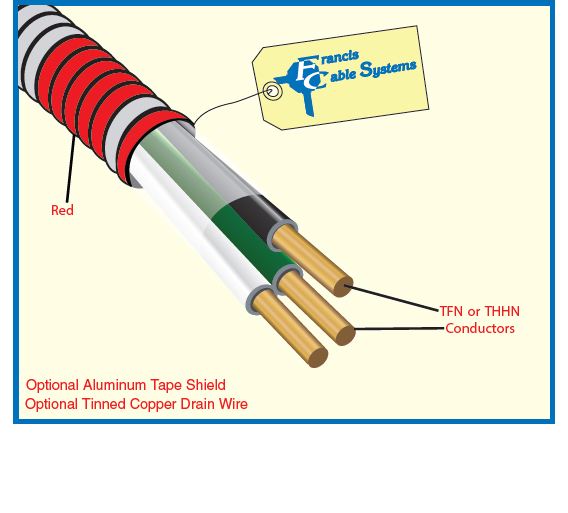

Metal-Clad Fire Alarm Cable

Metal-Clad Fire Alarm Cable

Construction Francis Cable System Metal-Clad Fire Alarm Cable is constructed with soft-drawn copper conductors and insulated with flame-retardant and heat-resistant PVC with an outer oil- and gasoline-resistant nylon jacket. Type THHN/THWN conductors are provided for sizes 14 AWG and 12 AWG cables; Type TFN conductor are provided for sizes 18 AWG and 16 AWG cables. The circuit conductors and a green insulated grounding conductor are cabled together and a polyester or polypropylene tape is wrapped around the assembly. Upon request, an optional Film/Foil Aluminum Laminate Shielding Tape with a tinned copper drain wire/grounding conductor is wrapped over the conductor assembly. Aluminum or Galvanized Steel interlocking armor is applied over the assembly. Red colored removable non-conductive labels suitable for plenums are applied to the armored cable every 18 inches or less, making it easy to identify as a fire alarm cable. Multiple twisted (cabled) conductors pairs/groups with optional shield(s) are available. The cable is dual rated as 90°C dry, 600 Volt Type MC and 105°C dry, 300 Volt Type FPLP cable.

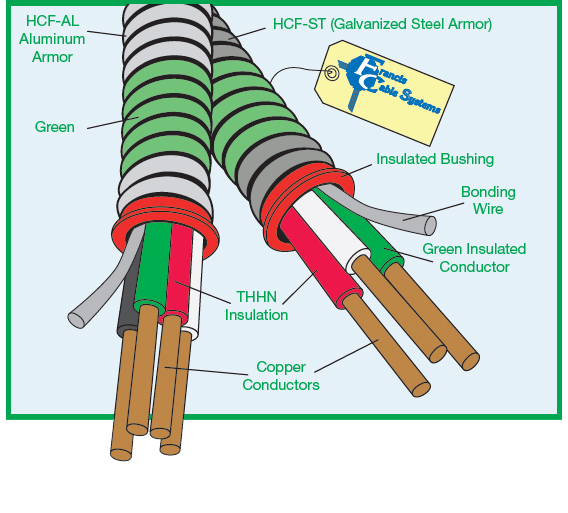

Health Care Facilities Cable  (HCF, Hospital Grade MC)

Health Care Facilities Cable

Health Care Facilities Cable manufactured by Francis Cables Systems meets the most stringent fire and safety standards for hospitals, nursing homes, and other health care facilities. The National Electrical Code (NEC), Underwriters Laboratories and other standards require specific safeguards in patient care areas and other settings where safety is critical. Contractors who recognize quality recommend Francis Cables Systems’ Health Care Facilities Cable for situations where only the finest wiring systems are demanded.

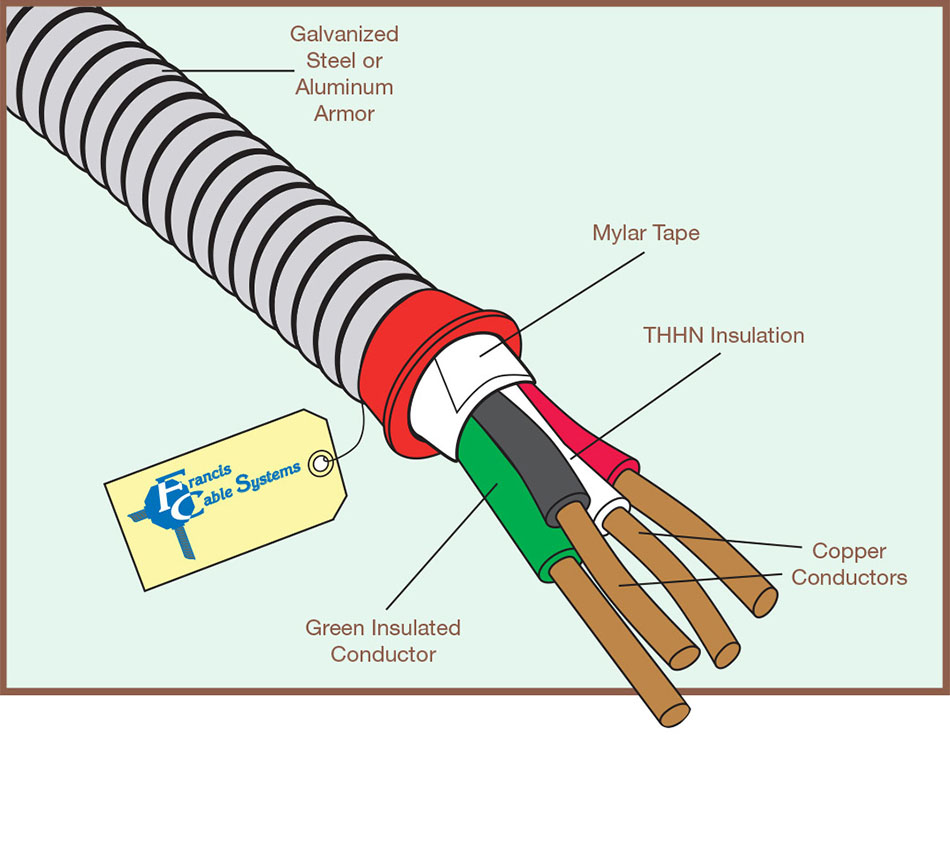

Metal-Clad Cable (MC Cable)

Metal-Clad Cable

Metal-Clad (MC) Cable produced by Francis Cable Systems is a cost-efficient alternative for pipe-and-wire systems, especially when installing in commercial buildings and places of large public assembly. MC Cable offers unsurpassed reliability and ease of application. Metal-Clad Cable provides greater resistance to mechanical damage, permits design flexibility of cable runs, and simplifies cable rerouting for equipment relocation. The cable handles power, lighting, control and signal circuits. It is ideal where space is limited and maximum performance is demanded.

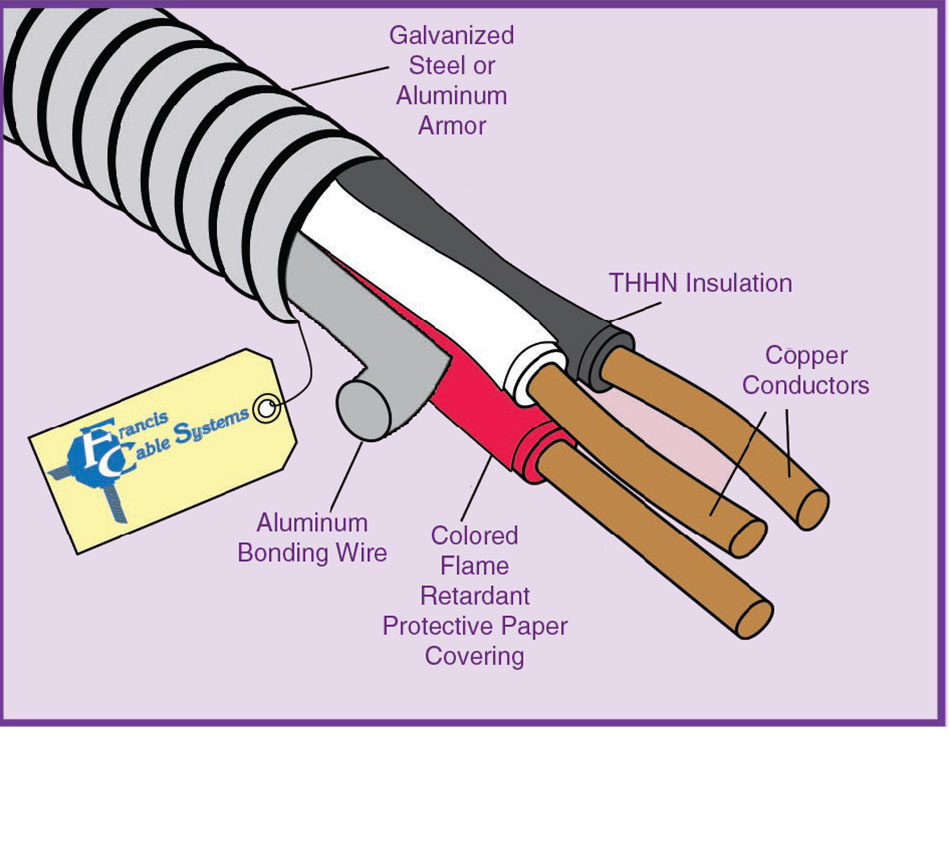

Metal-Clad ArmorGround Cable

Metal-Clad ArmorGround Cable (MCAG)

Metal-Clad (MC) Cable produced by Francis Cable Systems is a cost-efficient alternative for pipe-and-wire systems, especially when installing in commercial buildings and places of large public assembly. MC Cable offers unsurpassed reliability and ease of application. Metal-Clad Cable provides greater resistance to mechanical damage, permits design flexibility of cable runs, and simplifies cable rerouting for equipment relocation. The cable handles power, lighting, control and signal circuits. It is ideal where space is limited and maximum performance is demanded.

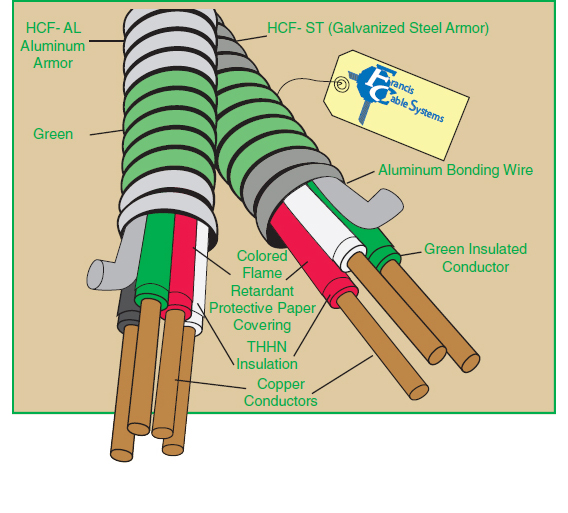

Health Care Facilities Cable MC-HCF-AG

Health Care Facilities Cable MCAG

Health Care Facilities Cable MCAG manufactured by Francis Cables Systems meets the most stringent fire and safety standards for hospitals, nursing homes, and other health care facilities. The National Electrical Code (NEC), Underwriters Laboratories and other standards require specific safeguards in patient care areas and other settings where safety is critical. Contractors who recognize quality recommend Francis Cable Systems’ Health Care Facilities Cable MCAG for situations where only the finest wiring systems are demanded.

Opti-Neutral  (Super Neutral MC)

Opti-Neutral

Opti-Neutral Cable produced by Francis Cable Systems is a cost-efficient alternative for pipe-and-wire systems, especially when installing in commercial buildings and places of large public assembly. Opti-Neutral Cable offers unsurpassed reliability and ease of application. Opti-Neutral Cable provides greater resistance to mechanical damage, permits design flexibility of cable runs, and simplifies cable rerouting for equipment relocation. Upgraded neutral conductors handle harmonic loads.

PVC-Jacketed Metal-Clad Cable

PVC-Jacketed Metal-Clad Cable

PVC-Jacketed Metal-Clad (PVC-MC) Cable is a superior cost-effective electrical cable designed for underground installation, embedment in concrete, and hazardous locations. Its oil-resistant and sunlight-resistant waterproof jacket makes it suitable for exterior aerial runs. Francis Cable Systems produces two additional PVC-jacketed MC cables for special applications. Parking Facilities Cable (gray color, oil and sunlight resistant PVC jacket) for parking deck applications and other exterior or underground sites. Swimming Pool Cable (blue color, oil, and sunlight-resistant PVC jacket) is perfect for swimming pool, water fountain, and other wet locations.
